Inauguration of the low level passage under Federico Lacroze Av. and Mitre Railway

A new tunnel that links Chacarita and Palermo. October 2013


At the end of 2012, AUSA awarded Latinoconsult S.A. the inspection of the work of the Low Level Pass of Av. Federico Lacroze and FFCC Miter tracks, thus being a participant in the set of projects for the elimination of barriers in the C.A.B.A. in order to avoid accidents and speed up vehicle flow.

The Paso Bajo Nivel has 4 lanes of vehicular traffic (2 + 2) of 3.30m each, a gauge of 4.30m, and a longitudinal slope of 7%, suitable for light and bus traffic. The total length of the viaduct is 268.50m and the speed of movement within the viaduct is 40km / h. It has side streets of coexistence allowing accessibility to the fronts. Two road bridges were built, one for the Cramer Street crossing over the viaduct and the other linking the streets of coexistence on the east side. The railroad crossing structure consists of a two-way wide gauge bridge, designed with post-tensioned (pre-cast) U-section beams. The pedestrian crossing is made up of stairs, walkways and ramps suitable for the circulation of people with reduced mobility. It has a storm drain system linked to a pumping well with three submersible pumps and a generator set.

Construction inspection: Latinoconsult S.A.
Constructor: José J. Chediack S.A.I.C.A.
Client: AUTOPISTAS URBANAS S.A.
Location: Av. Lacroze and Vías del Ex FFCC Miter.
Surface: 9,600 m2 surface.
Investment: $ 54,000,000 + VAT
Execution period: 13 months

Mitre Railway Viaduct

Name: Preliminary design and technical environmental impact study for an elevated railway viaduct on the FC Mitre tracks (Tigre branch).
Brief description: The project proposes integrating the volume of the viaduct into the urban space. The current Lisandro de la Torre and Belgrano C stations will need to be developed at a high level, including the corresponding building modifications. The elimination of level crossings will allow for an increase in the speed and frequency of the trains.
Location: Autonomous City of Buenos Aires, Argentina.
Year: 2015-2016
Client: Subsecretaría de Transporte. Gobierno de la Ciudad de Buenos Aires.

Back to portfolio

Transmilenio NQS – Bogotá

Name: Supervision of the adaptation of the NQS Trunk Line of the Transmilenio System.
Brief description: The works involved the adaptation of the NQS Trunk Line, between streets 92 and 68, contemplating 5 lanes in each direction, the implementation of 16 low-level railway crossings and 3 level railway crossings, and the displacement of part of the railway network. The work included the review of the socio-environmental Management Plan.

Location: City of Bogotá, Colombia.
Year: 2003-2010.
Client: Instituto de Desarrollo Urbano (IDU).

Back to portfolio

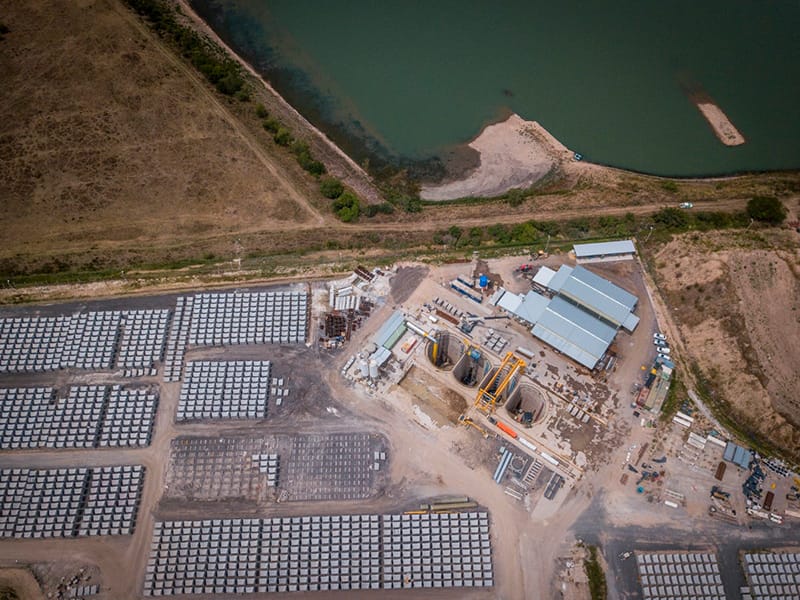

Underground River to Lomas and LS Nᵒ 1

Name: Work inspection service for the Underground River to Lomas and Pumping Station No. 1 project.
Brief description: The works consisted of the construction of a tunnel with an internal diameter of 3.90 m and a length of 13.54 km using a TBM (tunnel boring machine), from the expansion of the AySA water treatment plant in Bernal to the town of Temperley. At the end of the tunnel, a pumping station was built to improve the drinking water supply to various districts of Greater Buenos Aires.

Location: Province of Buenos Aires, Argentina.
Year: 2020-2024
Client: Agua y Saneamientos Argentinos S.A. (AySA)

Back to portfolio

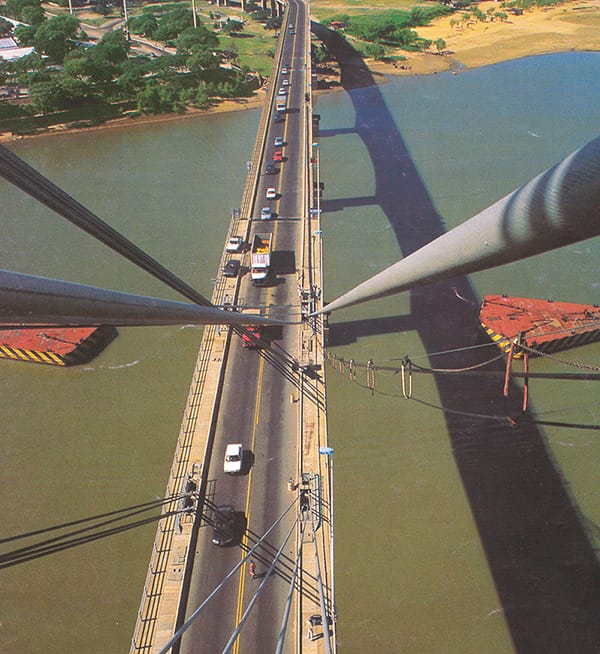

Chaco-Corrientes bridge

Type of Work: Project review and construction supervision.

At the time of its construction, this bridge, reinforced with precast and post-tensioned concrete girder-box elements, was considered the longest in South America. It is a communication route more than 1,600 m long, which crosses the Paraná River, and which has been of fundamental importance for the economic and social relations of the Chaco and Corrientes provinces. The tasks carried out were the review of the preliminary project and assistance in the selection of the contractor. Preparation and supervision of the complementary research program. Executive project of the bridge and accesses (1,670 m of bridge and 1,131 of viaducts. Construction supervision).

Back to portfolio

Final design for the Maldonado stream

Name: Executive Project for the Maldonado Stream Basin
Brief Description: To mitigate flooding problems, the following measures were taken: Increasing the catchment capacity of the catchment areas; Increasing the capacity of the existing main conduit through two relief tunnels; Caving in 1,177 m of the current outfall; Increasing the conveyance capacity of the secondary collection conduit networks.
Execution of complementary basic studies.
Socioeconomic and financial evaluation and development of the project, in-depth technical, environmental, urban planning, institutional, and legal studies for both structural and non-structural measures.

Location: Autonomous City of Buenos Aires, Argentina.
Year: 2001-2005
Client: Subunidad Provincial de Coordinación para la Emergencia (SUPCE). Gobierno de la Ciudad de Buenos Aires.

Back to portfolio

Highways project- PPP, Buenos Aires

Name: Executive Project for the works on Road Corridor A, part of the “Network of Highways and Safe Routes Project. PPP Project – Stage 1”.
Brief description: Preliminary Project, Preliminary Design, and Executive Project, including field studies (topography and geotechnics). BIM modeling with LOD 300 scope for the road layout. 3D coordination and clash detection. The works consisted of 124 km of roadway duplication (twinning), 32 km of bypasses, and 450 km of “Safe Route” upgrades.

Location: Province of Buenos Aires, Argentina.
Year: 2018-2020
Client: Concesionaria Cruz del Sur (Vial Agro S.A. – Paolini S.A. – INC Spa)

Back to portfolio

Fray Bentos pulp mill

Name: Studies, Analyses, Reports, and Evaluations related to the Environmental Impact of the Fray Bentos Pulp Mill
Brief description: With the objective of anticipating potential negative effects, possible damages were analyzed, costs were calculated, and a management plan was created.

Location: Uruguay
Year: 2006
Client: Jefatura de Gabinete de Ministros – Secretaría de Ambiente y Desarrollo Sustentable

Back to portfolio

Subway Line “E”: Retiro – Bolívar

Name: Supervision and approval of basic and conceptual engineering and inspection of civil works for Buenos Aires Subway Line E
Brief description: This project covered the 2,800 m section between Plaza de Mayo (Bolívar Station) and Retiro Station.
The project consisted of a tunnel and three stations, two of which connect with Lines B and C. The work included tunnels and other structures, geotechnics, concrete technology, architecture, environmental, occupational health and safety, interference with public services, sanitary engineering, and legal and contractual aspects. The work included review of the contractor’s socio-environmental management plan and monitoring of its implementation.

Location: Autonomous City of Buenos Aires, Argentina
Year: 2008-2015
Client: Secretaría de Transporte de La Nación

Back to portfolio

Hydraulic plan of the City of Buenos Aires

Type of job:

a) Master Plan for Hydraulic Management of the City of Buenos Aires: preliminary draft level.
b) Arroyo Maldonado Basin: Executive Project and Bidding Documentation.

Definition of structural and non-structural measures aimed at optimizing flood management throughout the City. Evaluation of alternatives and formulation of an executive project to comprehensively resolve the problem, primarily addressing hydraulic, urban, environmental and land use criteria, ensuring the reliability of its operation and maintenance. Preparation of the bidding documentation for the works and the international credit application for the financing of the works.

The Master Plan included the following works:

  • Arroyo Maldonado basin executive project (TBM)
  • Arroyo Vega basin executive preliminary draft (TBM)
  • Arroyo Medrano basin executive preliminary draft
  • Antiguo – Ugarteche basins Executive preliminary Draft
  • Boca – Barracas basin executive preliminary draft
  • Ochoa y Elía basin executive preliminary draft
  • Arroyo Erézcano basin Executive preliminary draft
  • Arroyo Cildañez basin Executive preliminary draft
  • Larrazábal and Escalada basin executive preliminary draft
Back to portfolio
